Electromechanical Switch Types: Rocker Switch - SPST

0:00
Okay, we're going to be doing a single pole, single throw rocker switch here
0:06
Single pole means that it has one pole for the input power, or the input pole
0:16
And then we have a single throw, meaning that it has a single pull to throw power to a load
0:26

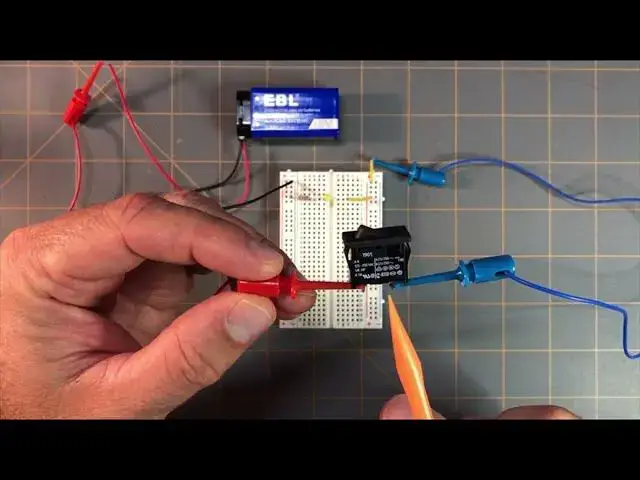

So I have a simple circuit set up here for this. rocker switch. I have my power source, which is just a nine-volt battery. I have the positive
0:36
power supply going through the red wire from the battery to this red jumper wire. The probe is
0:44
going from the red positive power to this terminal of the rocker switch. And then I have this
0:59
blue jumper wire where its probe is connected to the other side or the other terminal of this
1:05
rocker switch and it going around and it connected to this yellow jumper wire here that connected to the positive supply of the breadboard where there another yellow jumper wire here connected to that positive power supply
1:22
and the other end of the yellow jumper wire is connected to the anode of this yellow LED
1:31
the cathode of the yellow LED continues to this resistor and the resistor continues
1:40
to the negative supply of the breadboard continuing on down the black wire
1:47
to the negative supply of the power source so a rocker switch
1:55
just has a rocker at the top of it as the switch itself
2:00
It does a seesaw action where if you press it one way the yellow LED comes on
2:07
press it the other way it turns off so you can see there's this seesaw action here
2:14
so looking at the LED on off
