Okay, we have our push button switch
0:02
here with our LED
0:05
and it turns on. Now, we're going to
0:08
switch our push button switch
0:12

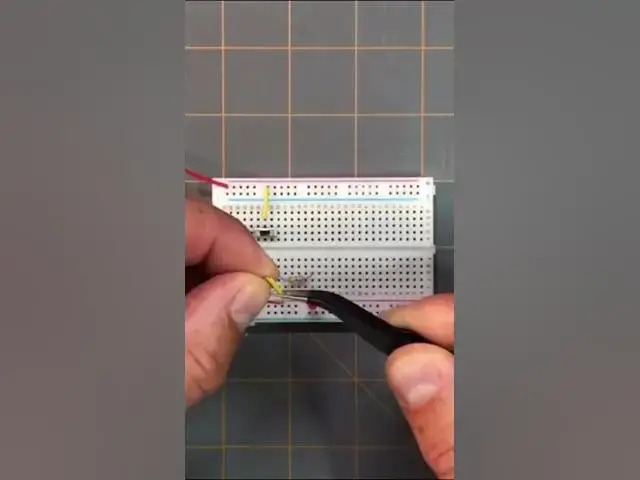

with a slide switch. You can see it has
0:17
three pins or three terminals on it. I
0:20
need to line up the center pin with the
0:23
yellow jumper wire like so.
0:29
So, I have
0:31
the center pin
0:33
of the slide switch in line with my
0:38
yellow jumper wire
0:40
which is attached to the positive power
0:42
supply. Now I need another jumper wire,
0:45
this other yellow one. And I need to
0:48
place it to my right side terminal of
0:52
the switch
0:55
to our resistor lead here. So right now
1:00
we can see the LED is not on
1:03
the switch. If I zoom in a little bit
1:06
here,
1:08
the switch,
1:10
the slider is currently to the left side
1:13
here. So, right now there's a pin. The
1:16
left pin is not connected to anything.
1:20
The center pin is connected
1:22
to this yellow jumper wire which is
1:25
connected to the power or the positive
1:28
power supply. And then we have the right
1:31
pin of the slider switch connected to
1:33
this yellow jumper wire which is
1:36
connected to this leg of the resistor.
1:41
So now if I
1:43
were to switch the slider over
1:47
to the right side, we see the LED comes
1:50
on.
