💡Toggle Switch Circuit
Oct 2, 2025
💡Toggle Switch Circuit
Show More Show Less View Video Transcript
0:00
Okay, so we've done the push button
0:02
switch, we've done the slide switch, and
0:05
we've done the rocker switch. Next,
0:10
we're going to try our hand in a toggle
0:13
switch.
0:15

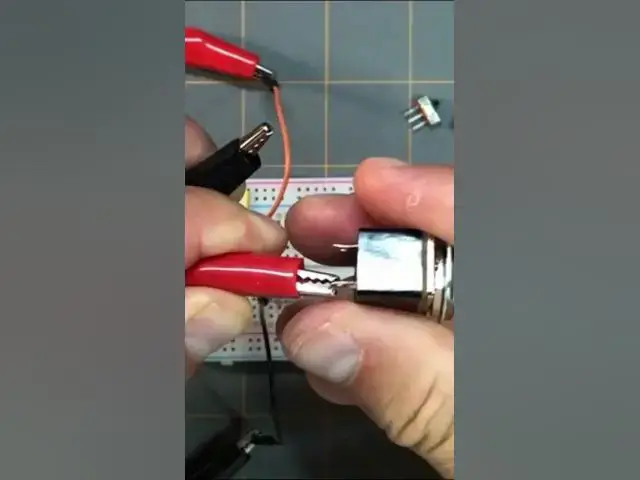

I couldn't find a small toggle switch,
0:18
so I'm going to have to use this
0:20
slightly larger one, but it's got two
0:23
terminals just like our rocker switch
0:27
here. So, I'm going to use the same
0:29
setup with our alligator clips as we did
0:33
in the demonstration of the rocker
0:35
switch. I'm just going to take the
0:38
alligator clips off of the rocker
0:40
switch.
0:42
And I'm going to place
0:45
the red alligator clip on one side
0:50
on one terminal and the black alligator
0:53
clip on the opposite terminal like so.
0:58
So, now we have our LED here.
1:03
We're currently in the off position.
1:07
And if I can move out of the way,
1:11
I turn it on, the LED turns on. I turn
1:15
it off, the LED turns off.
1:19
On, off, on, off.
1:25
And that is the toggle switch.
#Electromechanical Devices
